1975 ELK EM-5 Professional Echo Machine Restoration Gallery

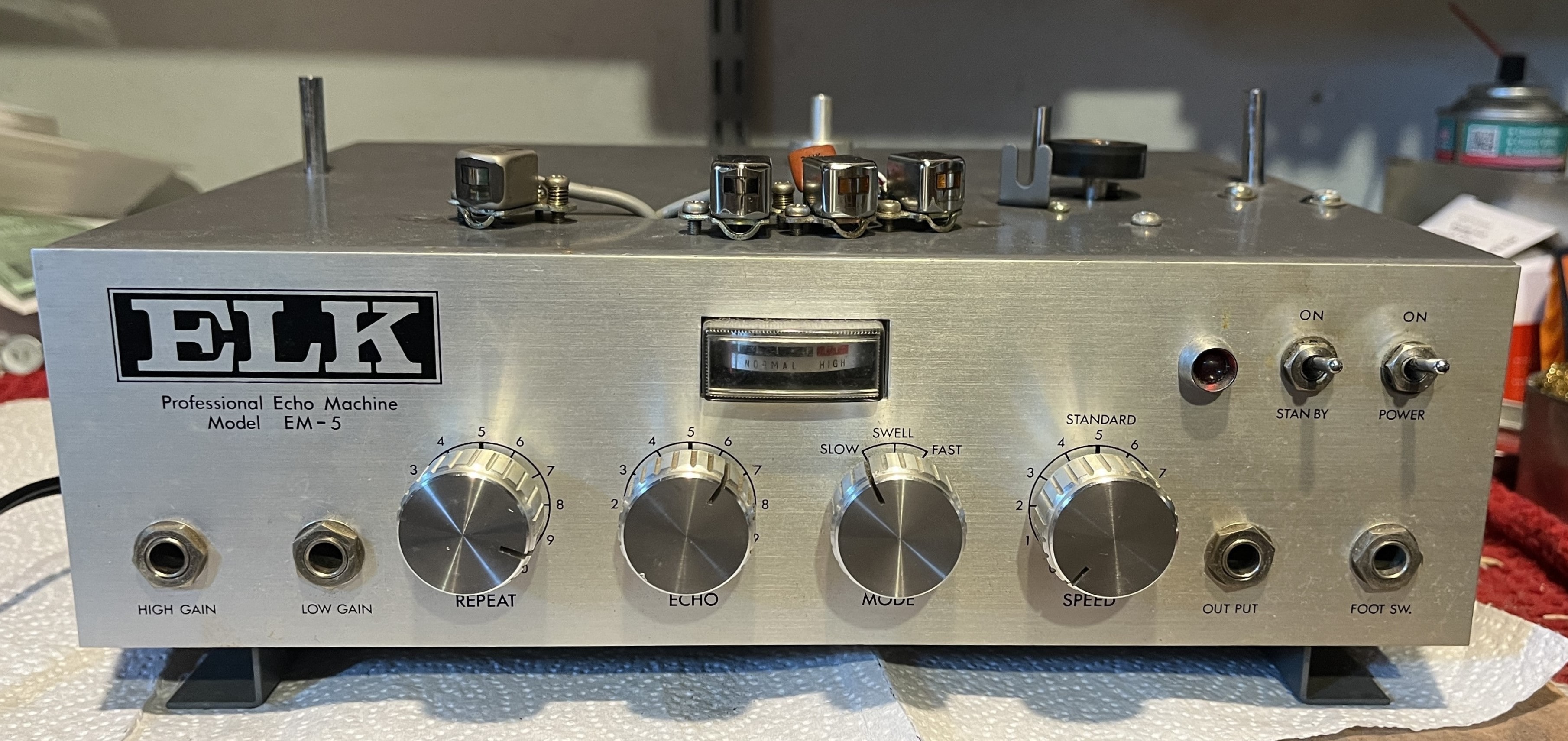

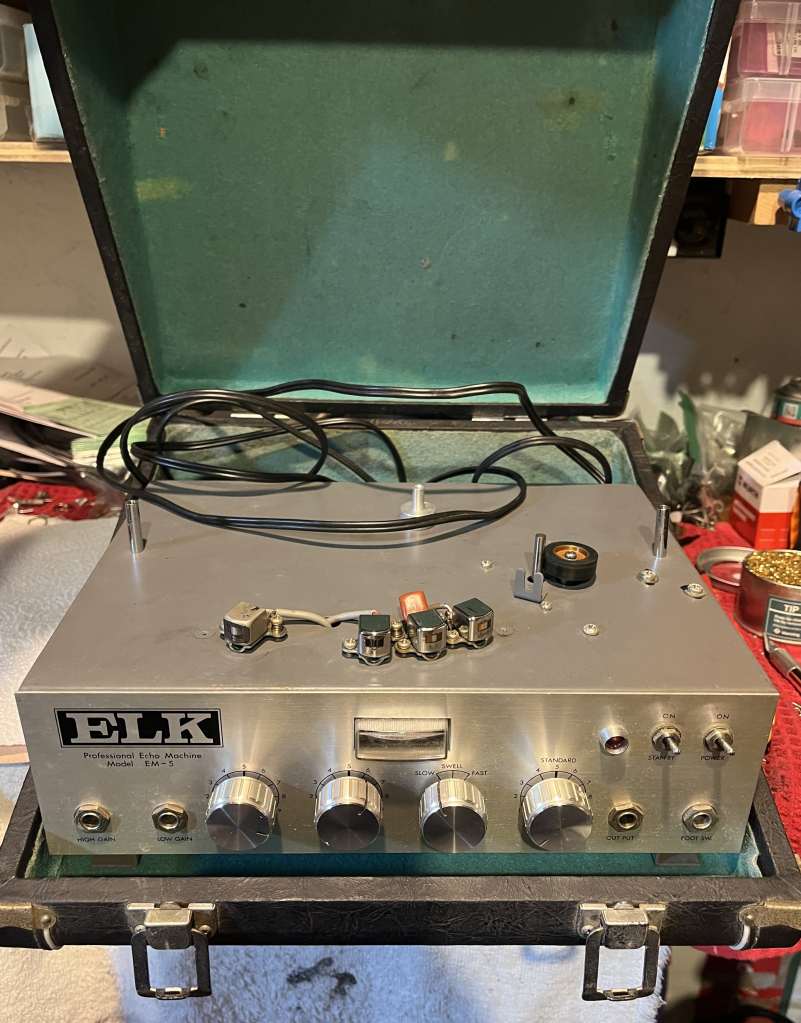

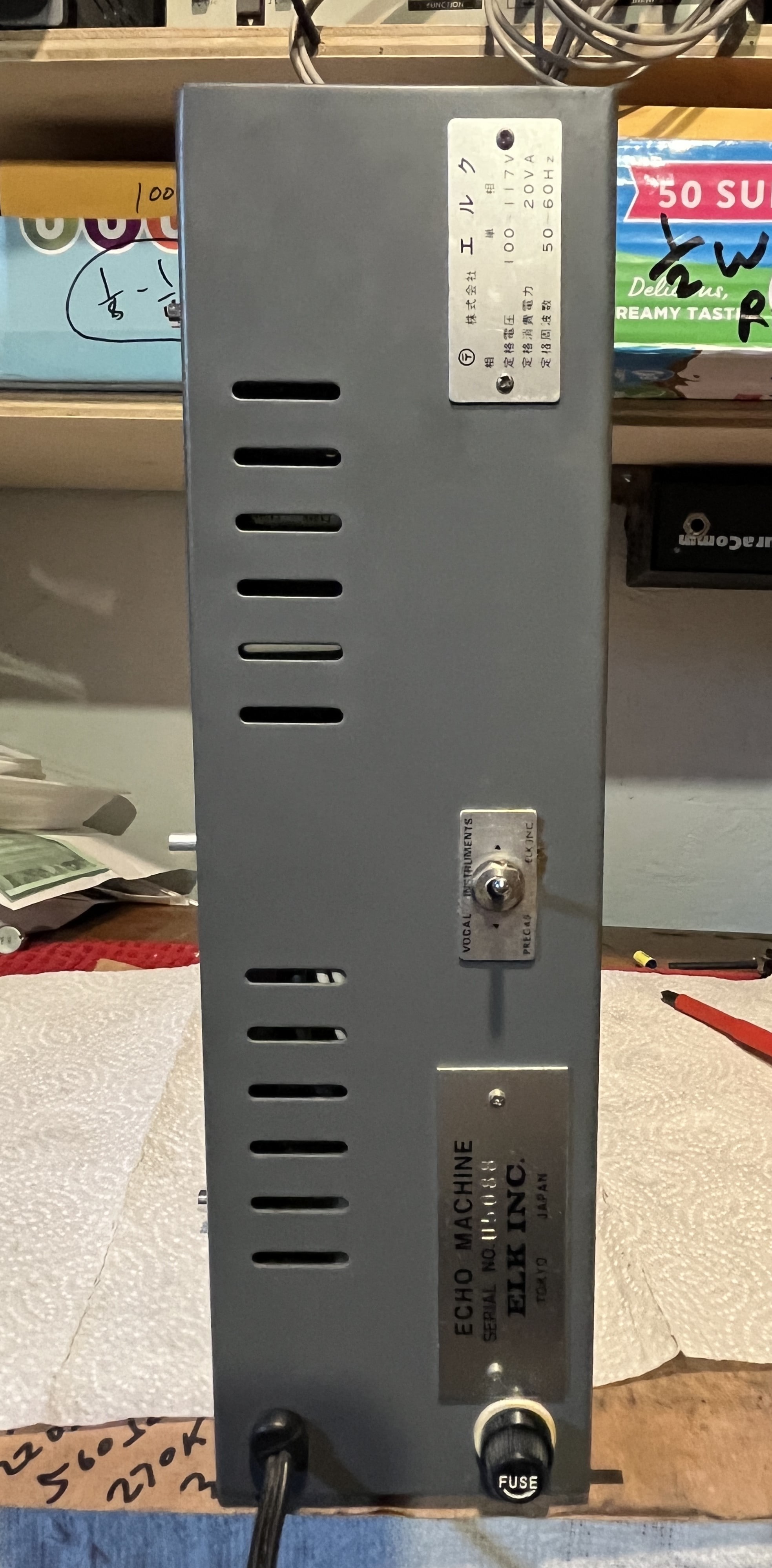

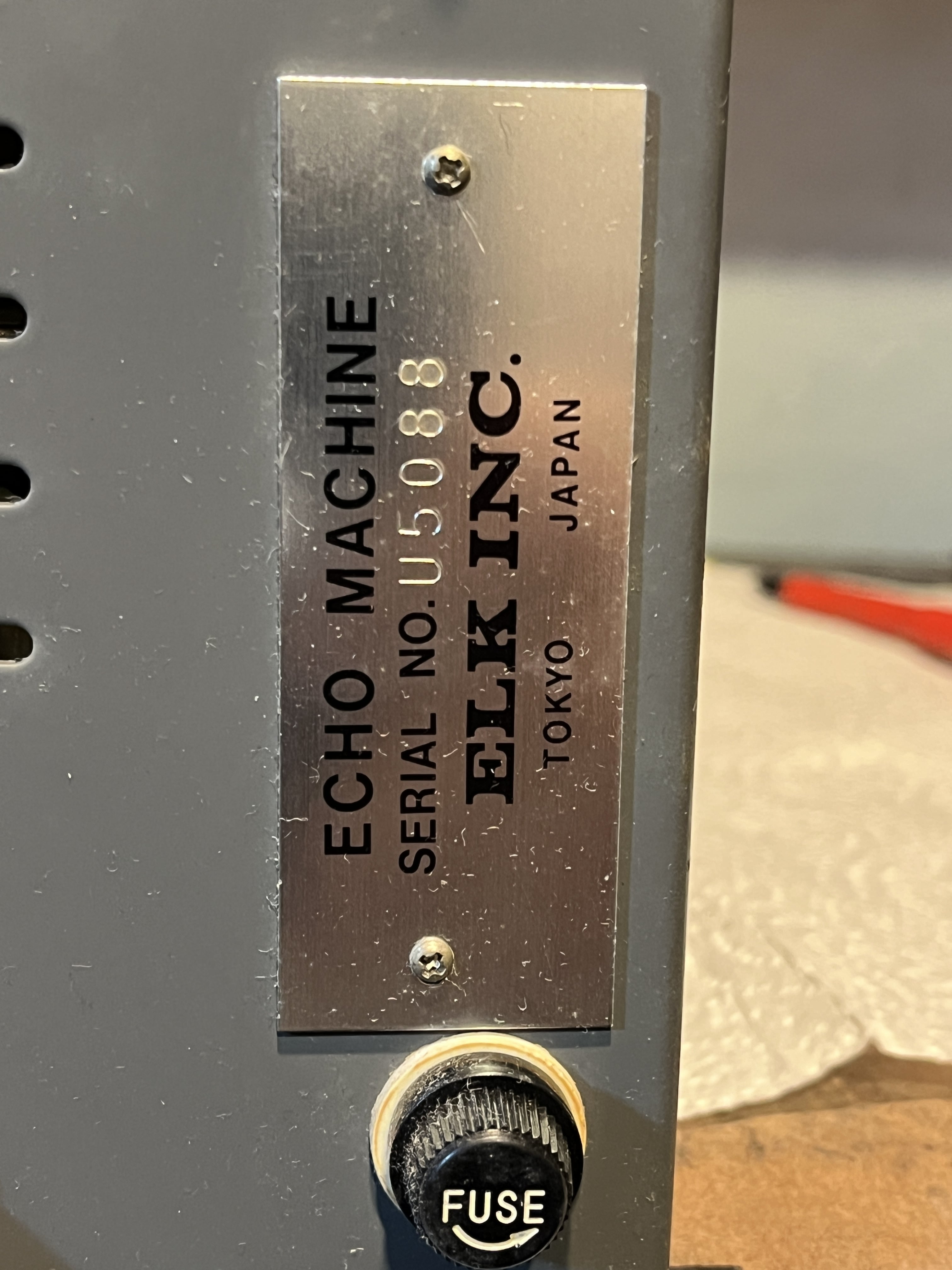

ELK EM-5 in it's original case
Complete in it’s original case.

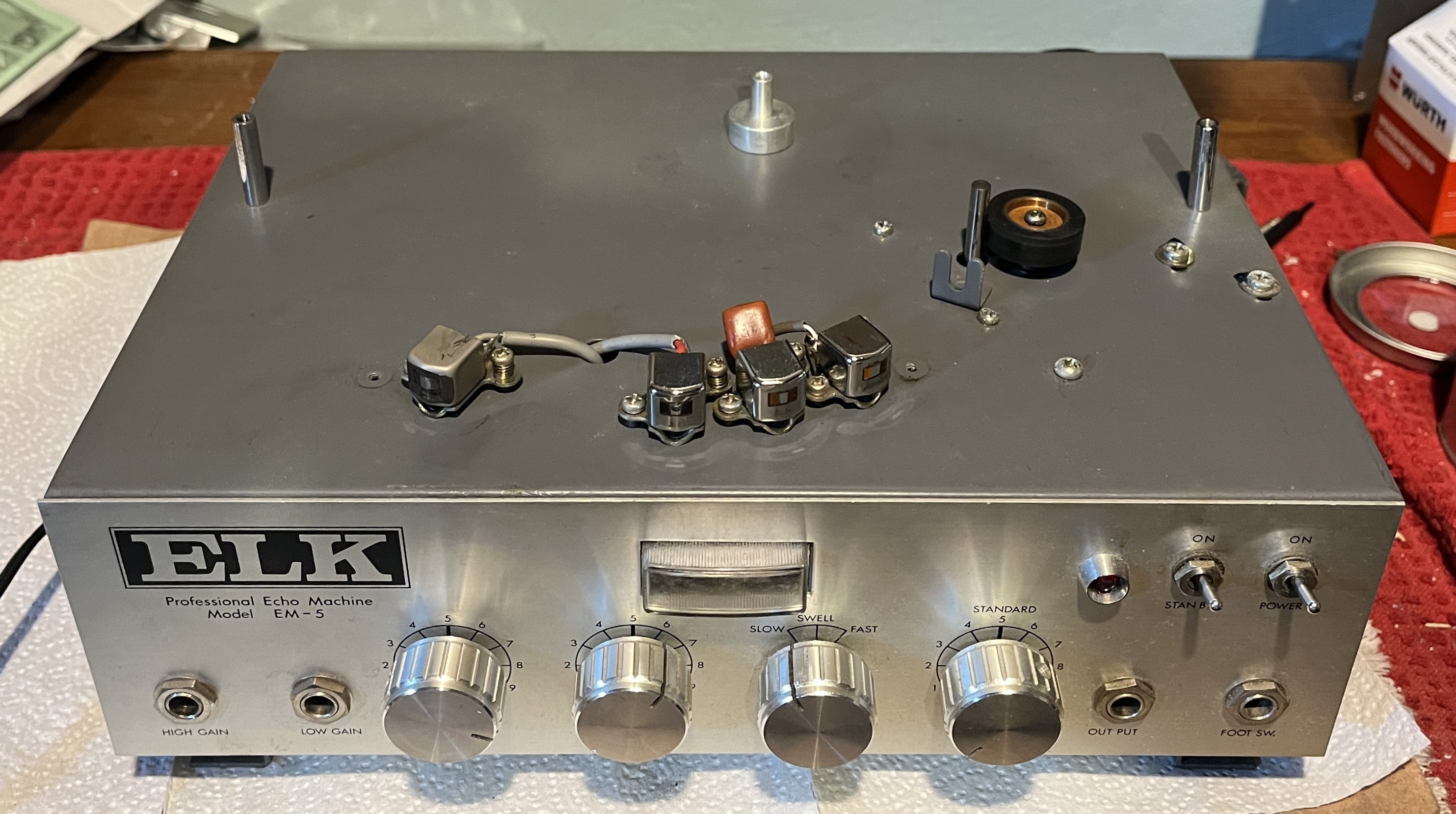

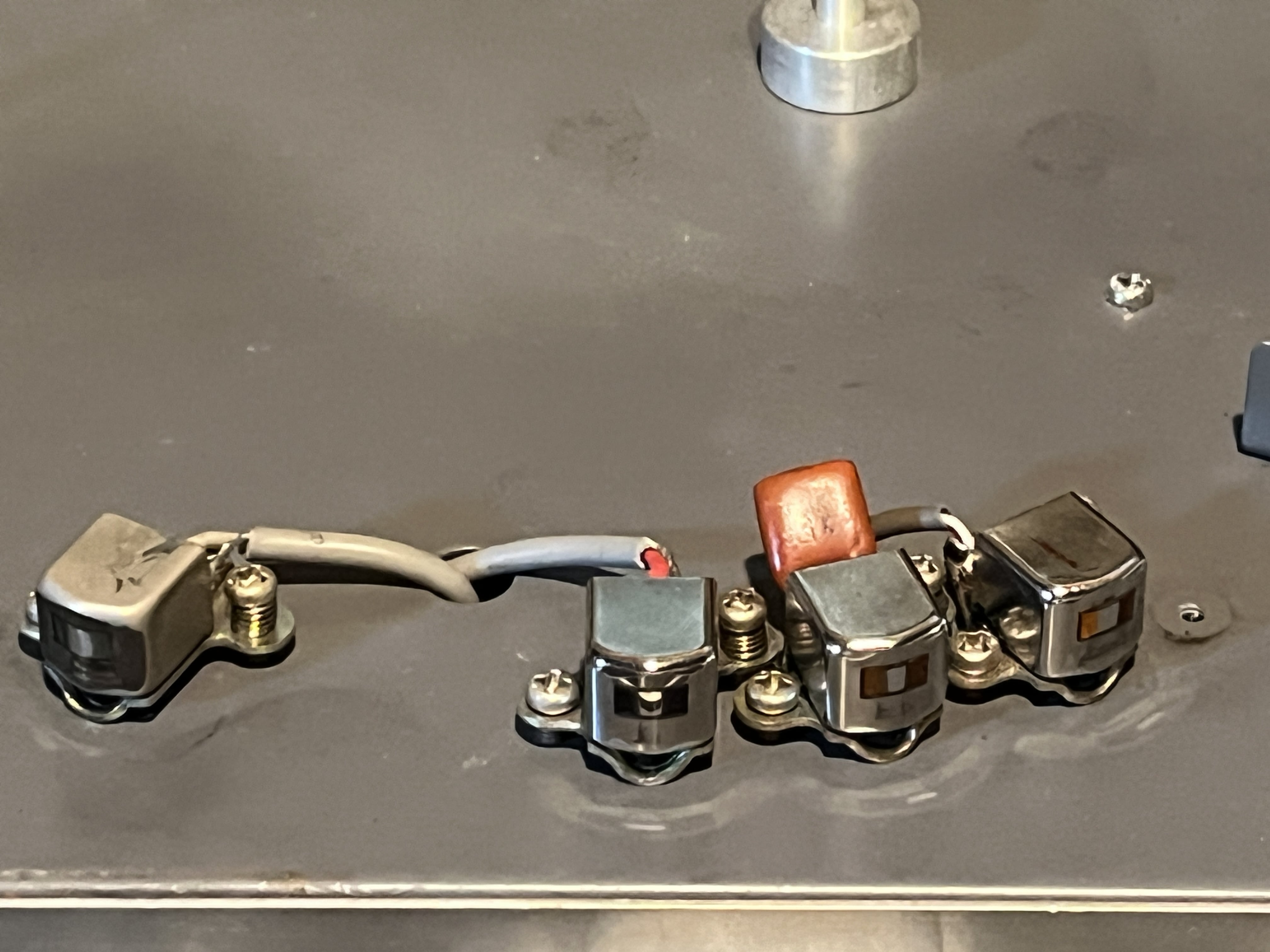

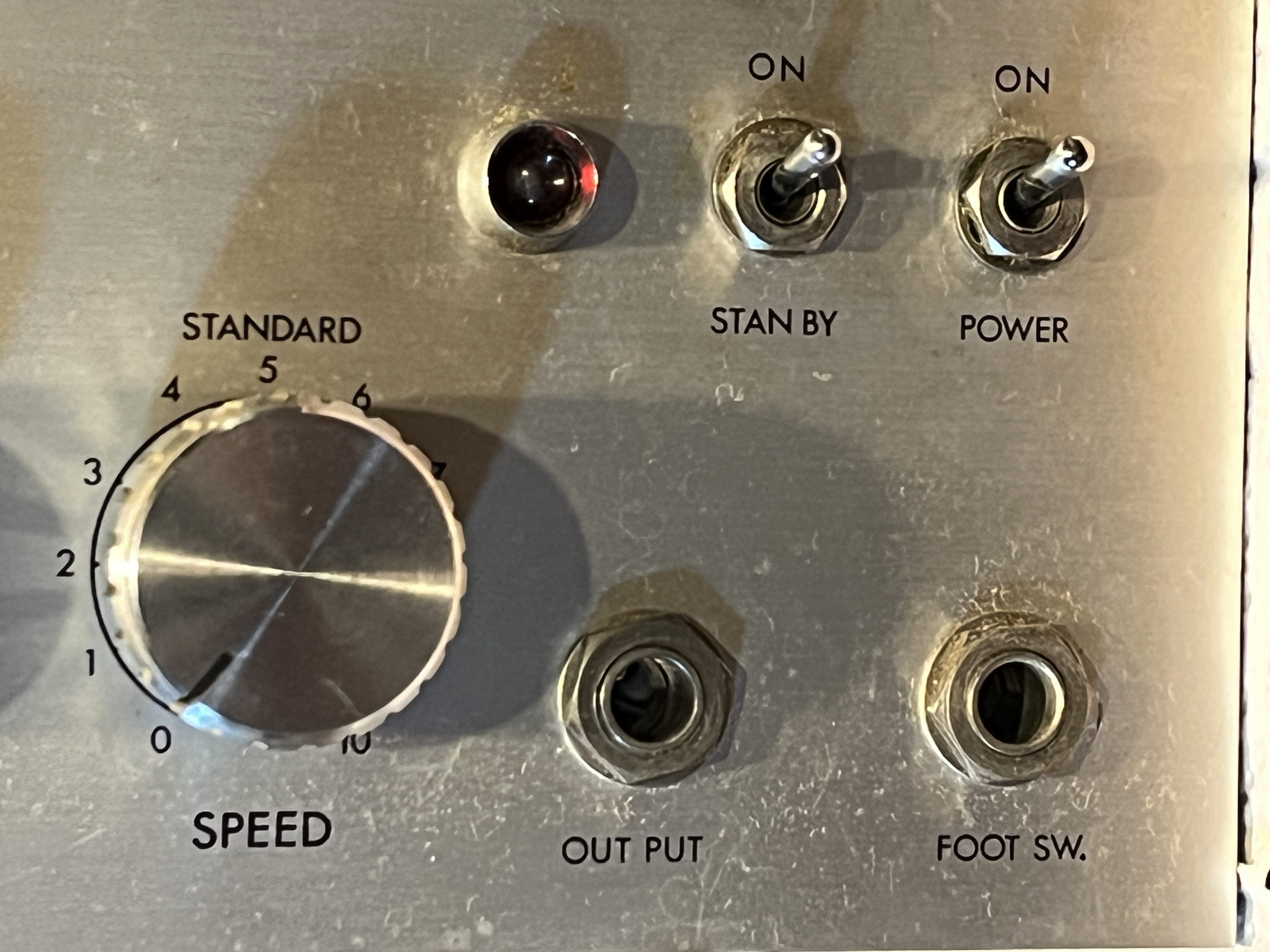

ELK EM-5 tape heads
Heads need to be cleaned, lots of residue on them

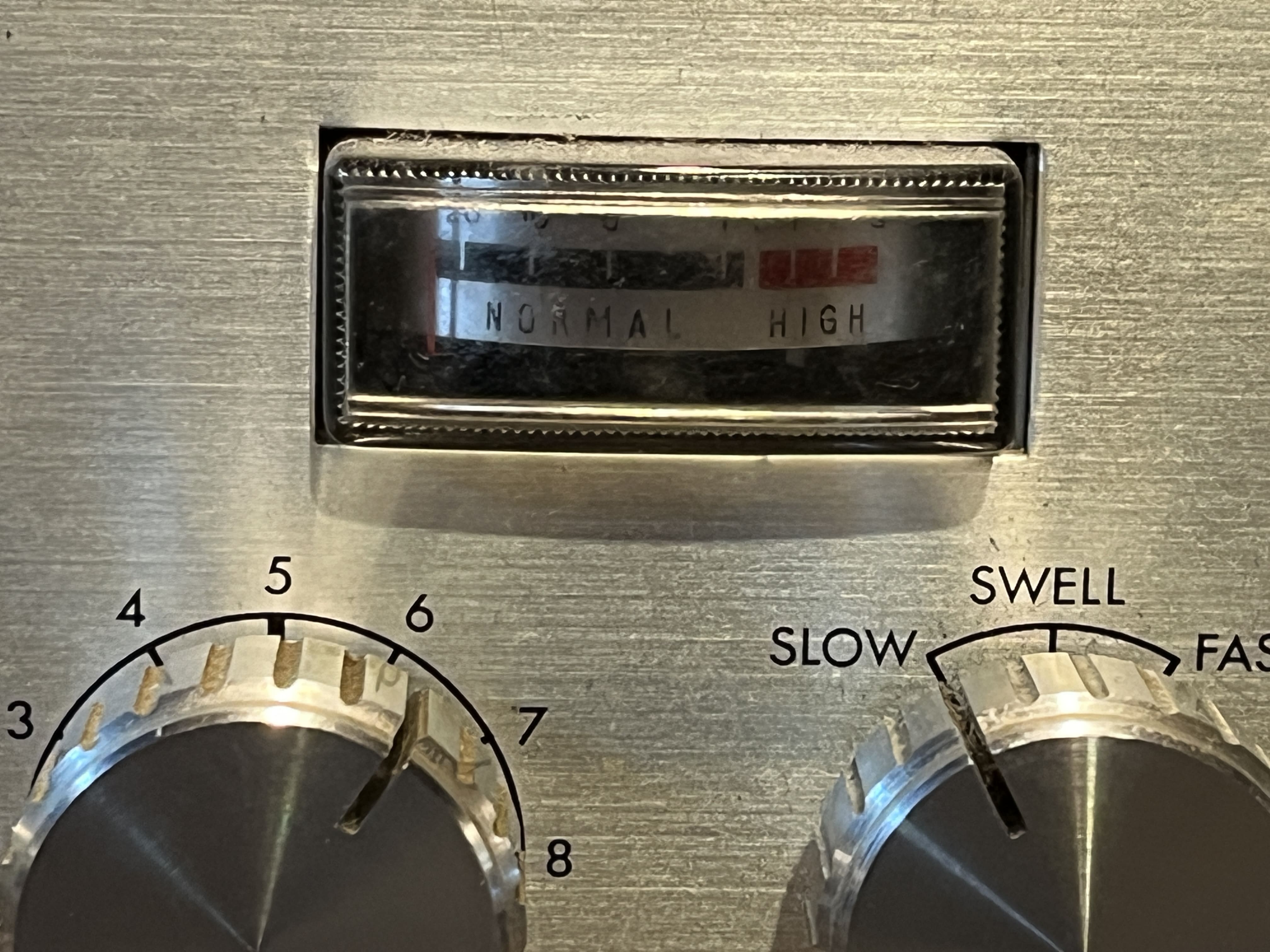

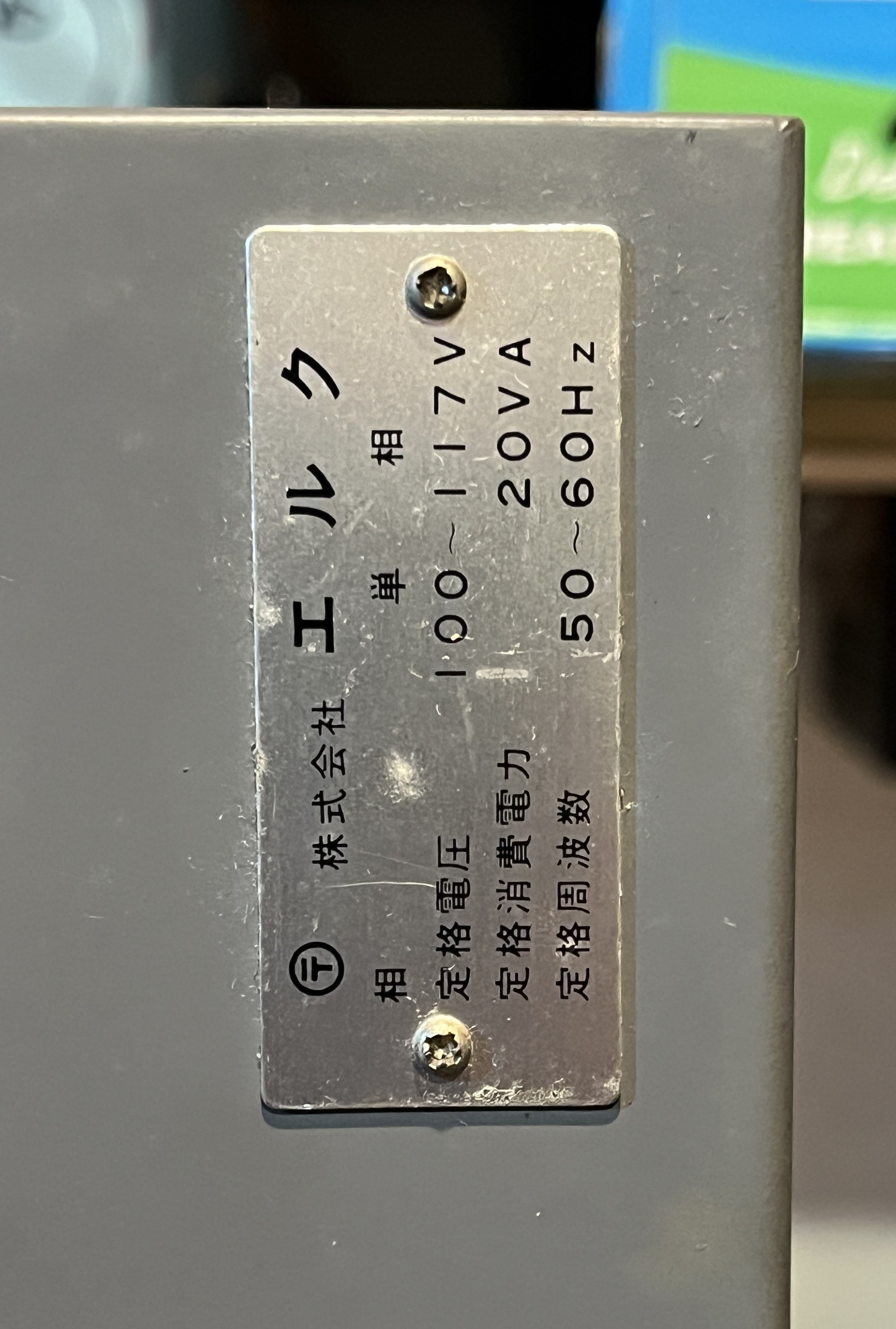

It’s in great shape, just a few scratches.

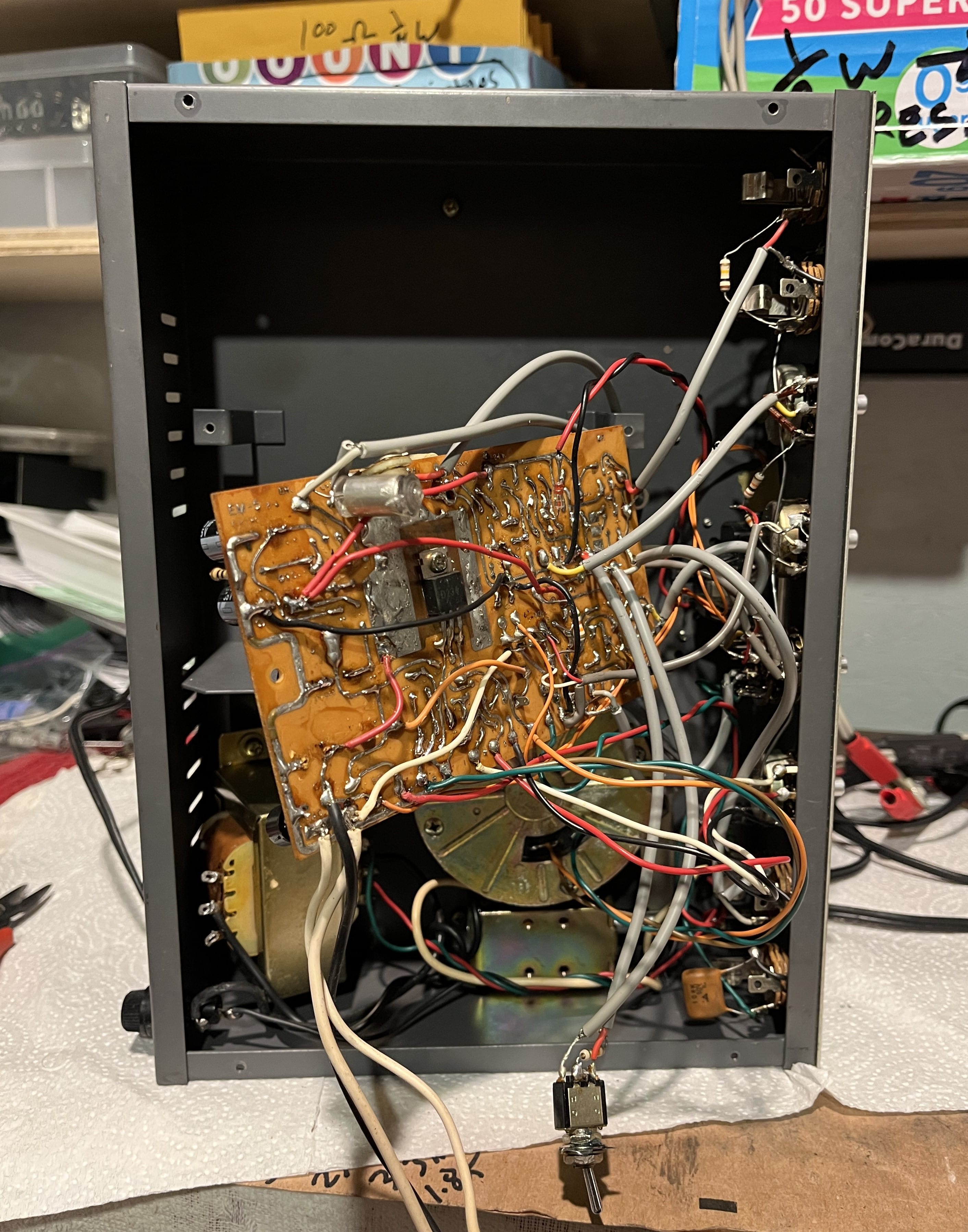

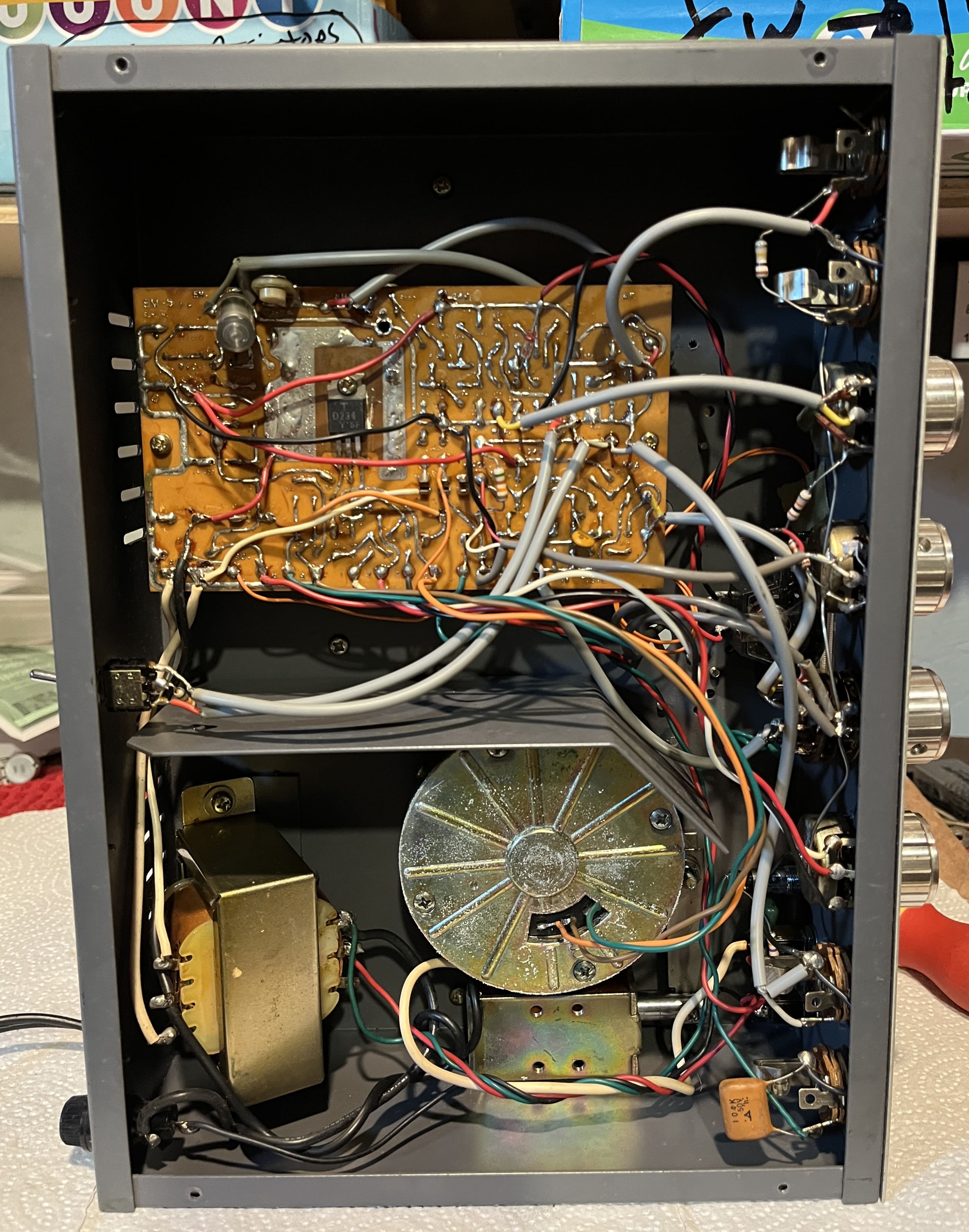

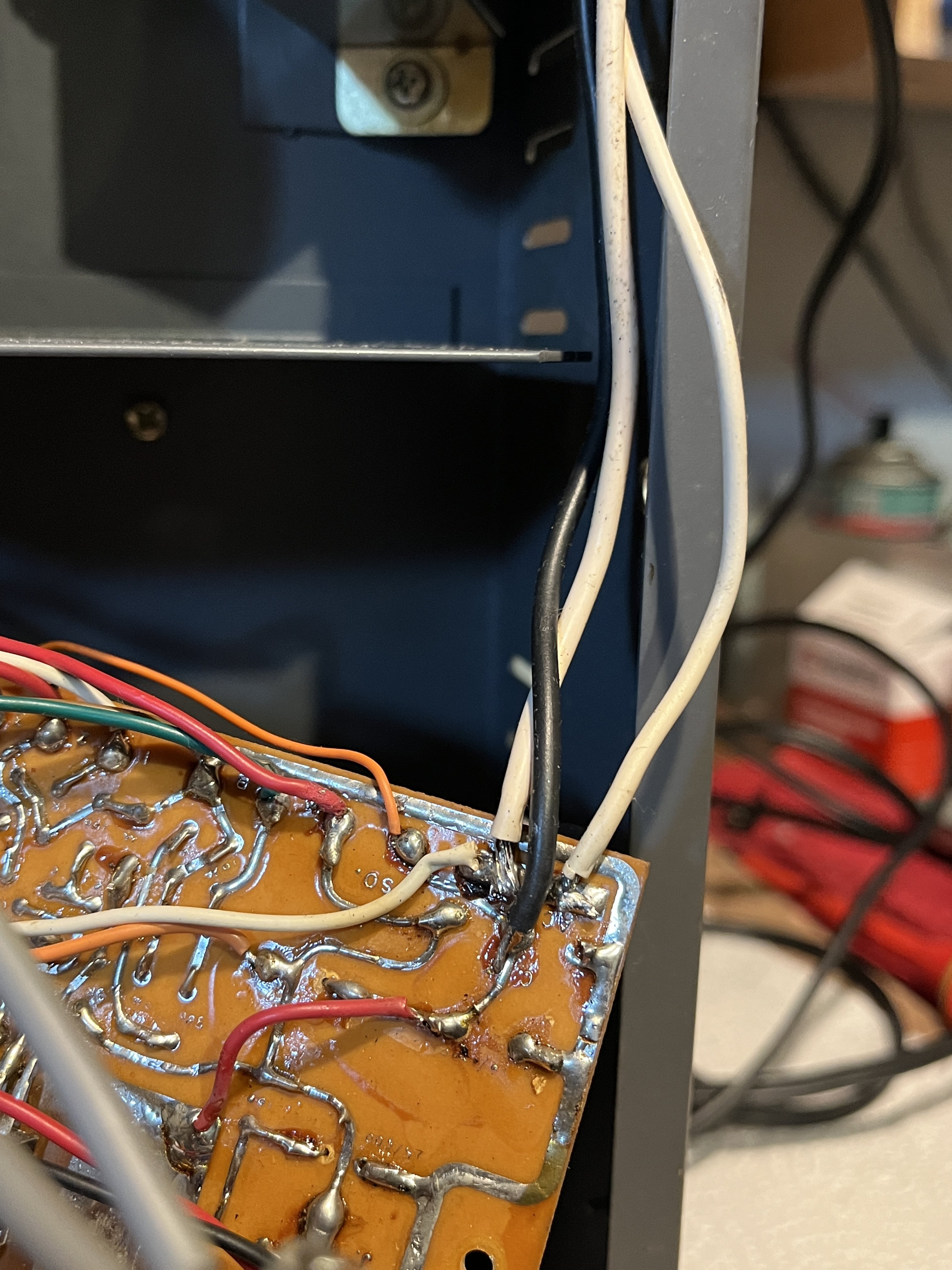

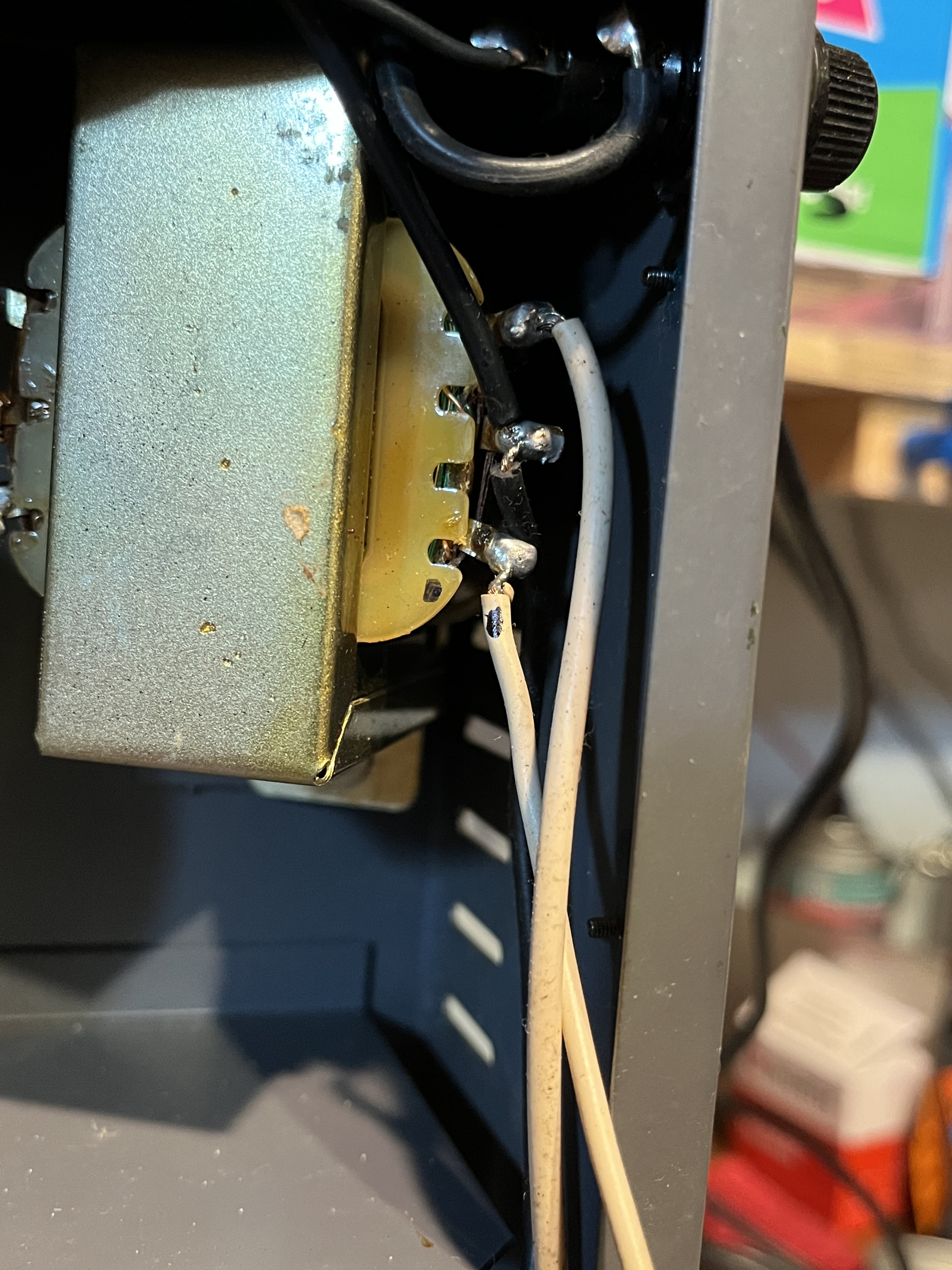

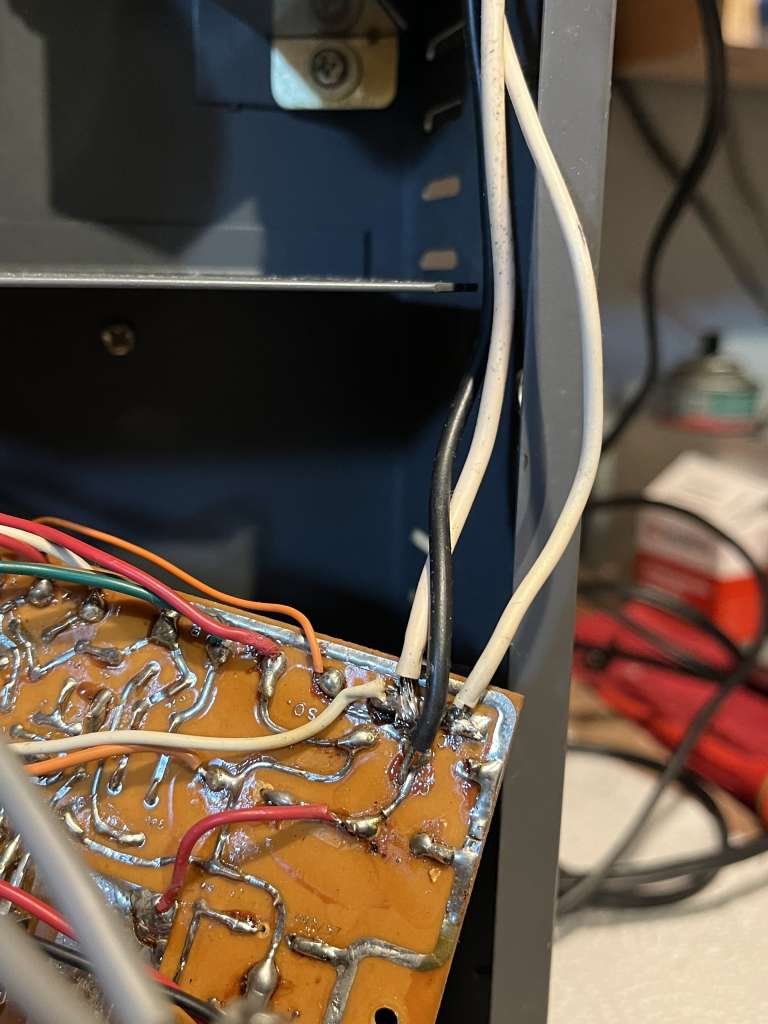

ELK EM-5 inside
What it looks like as opened for the first time in probably 49 years.

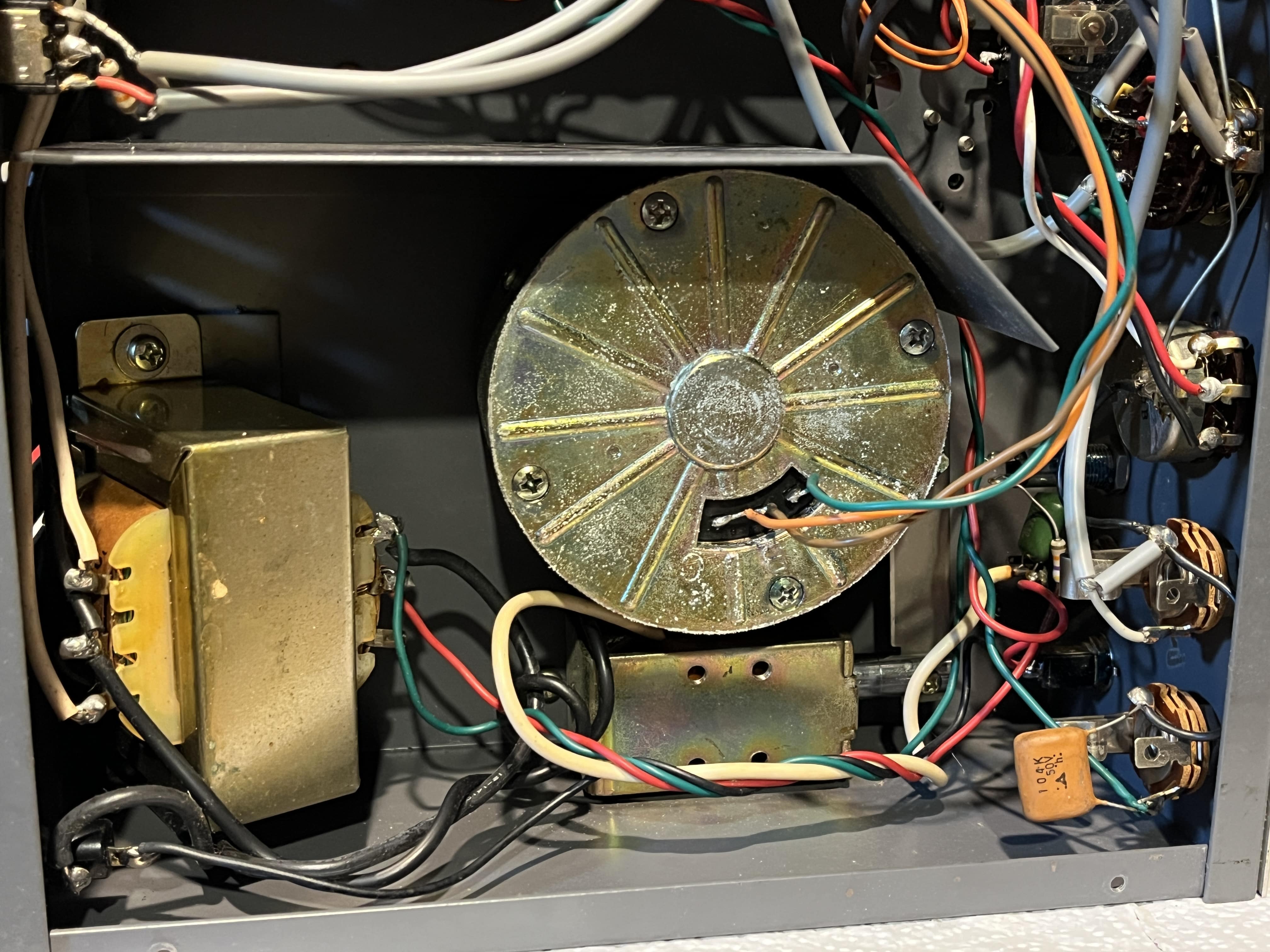

ELK EM-5 motor
Looks like the same capstan motor in an Ace Tone EC-10.
Time to dig in and replace old parts!

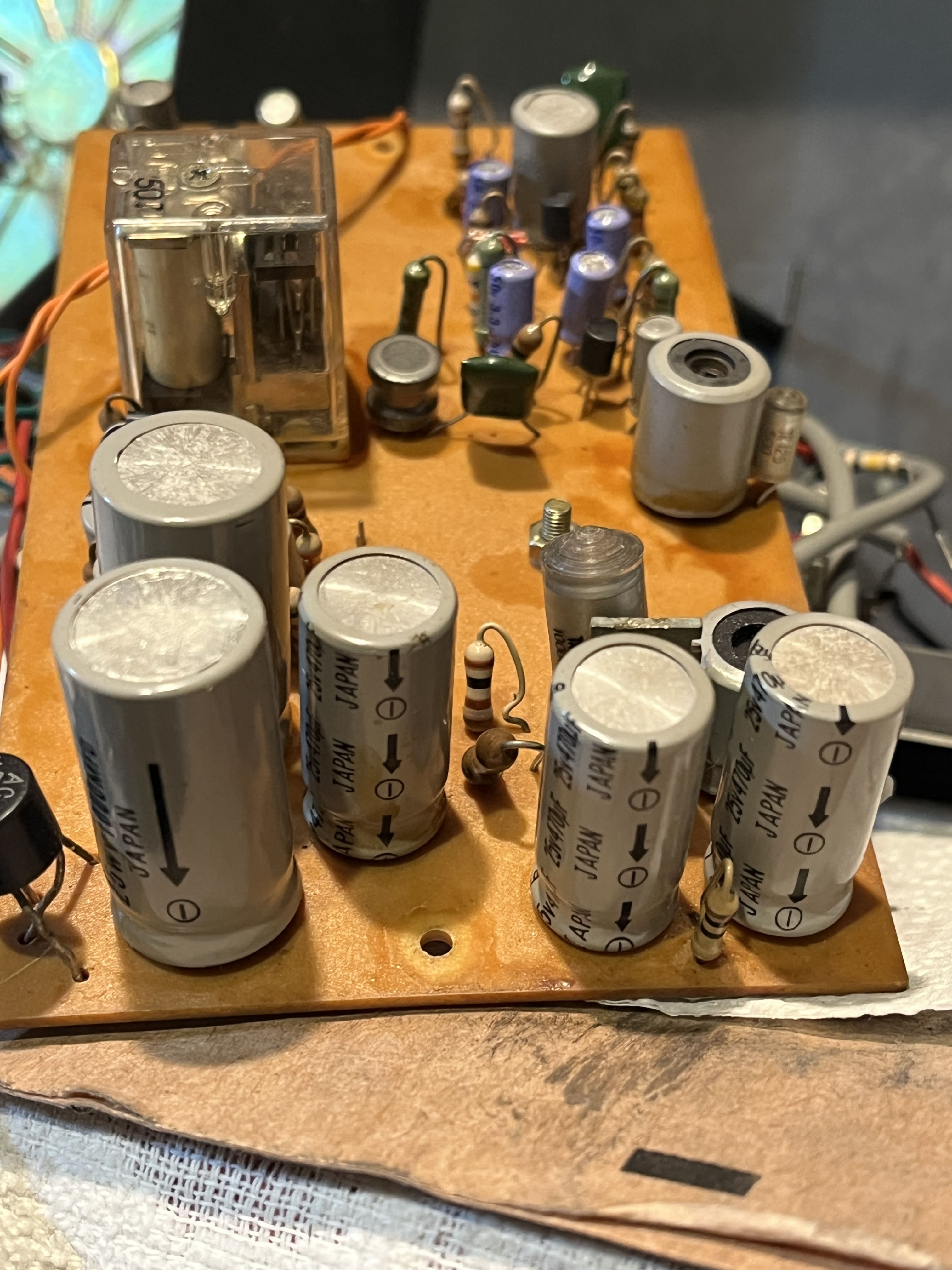

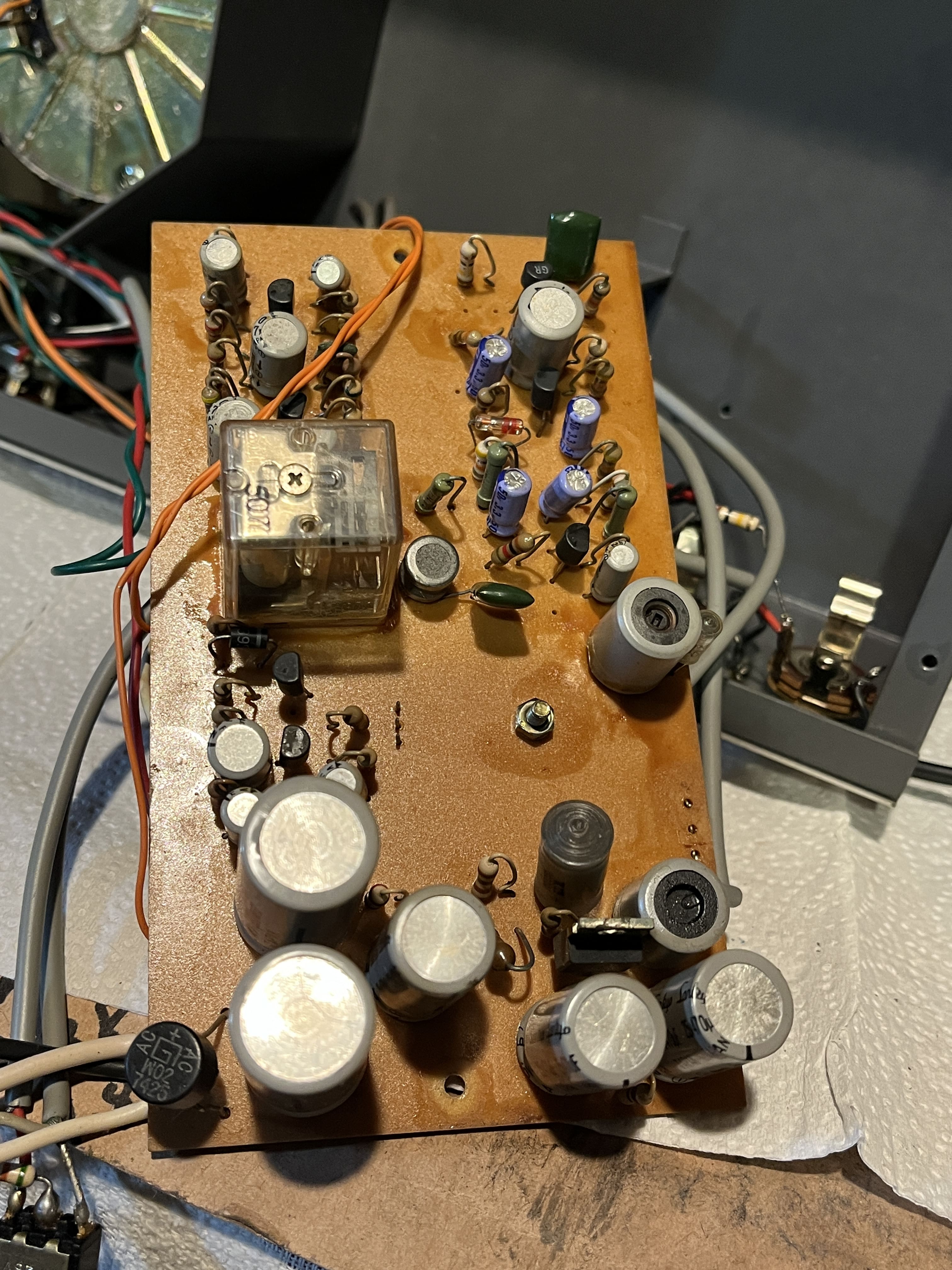

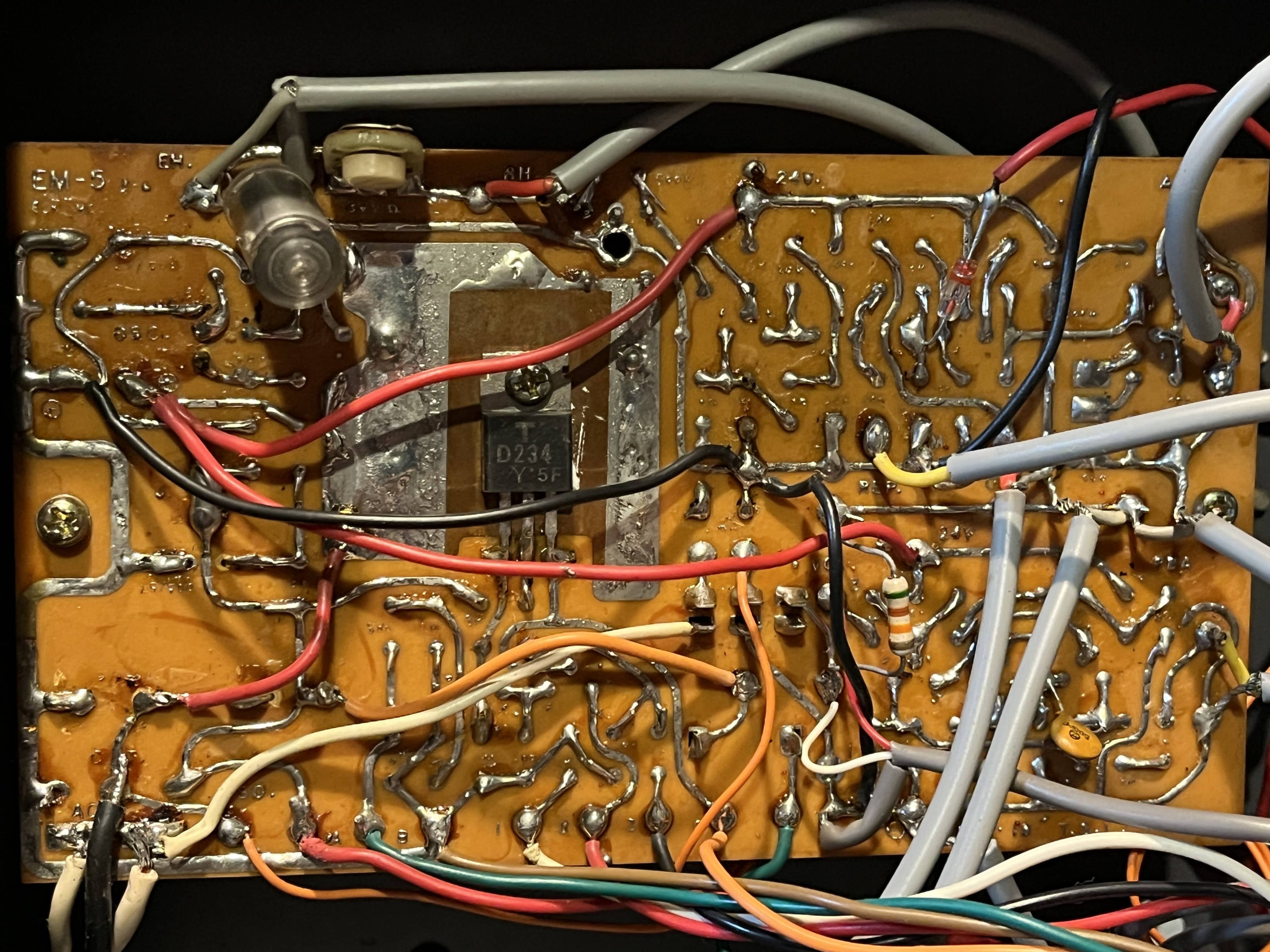

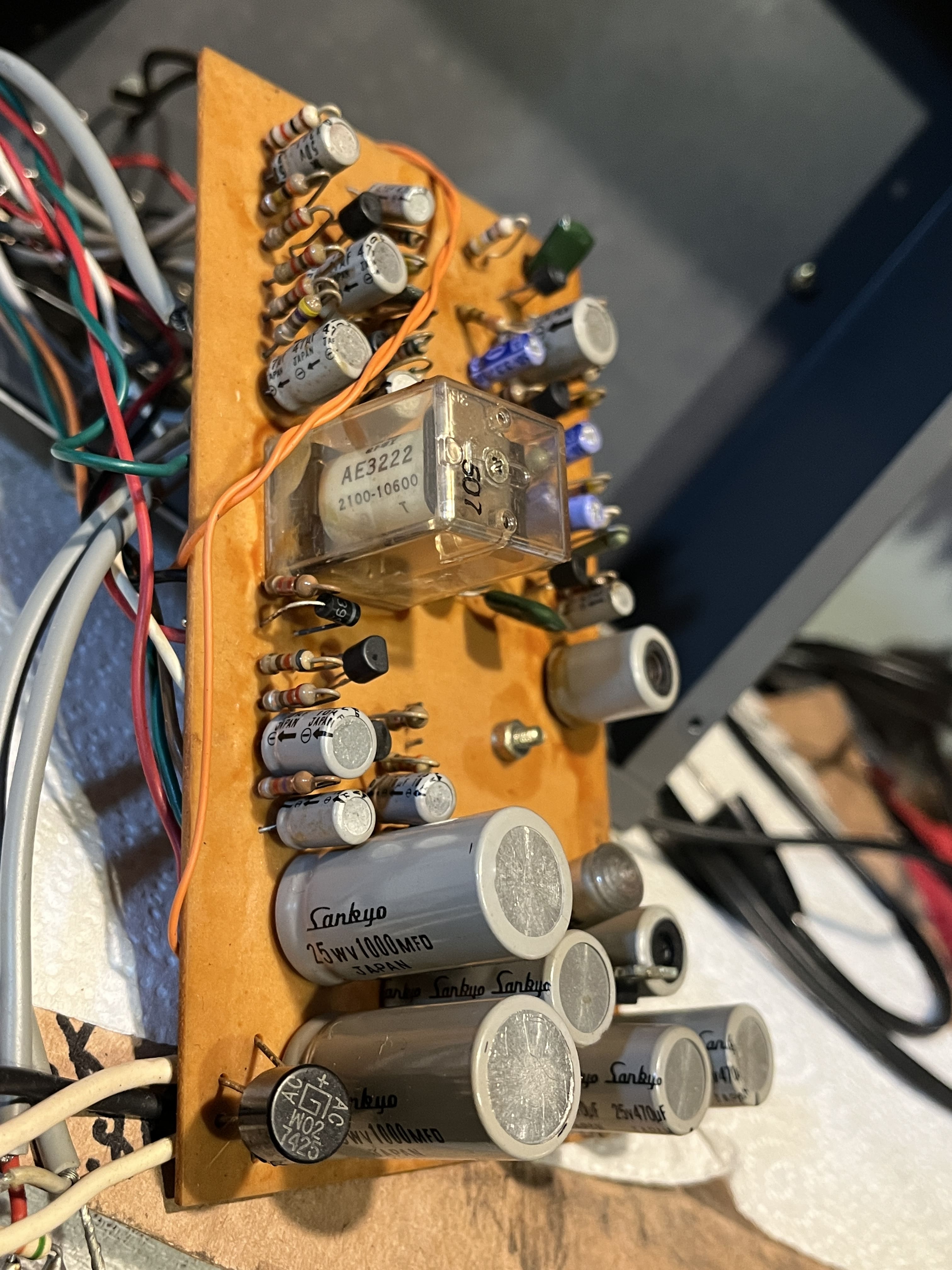

ELK EM-5 circuit board
Combination of Sankyo and Matsushita (Panasonic) caps.

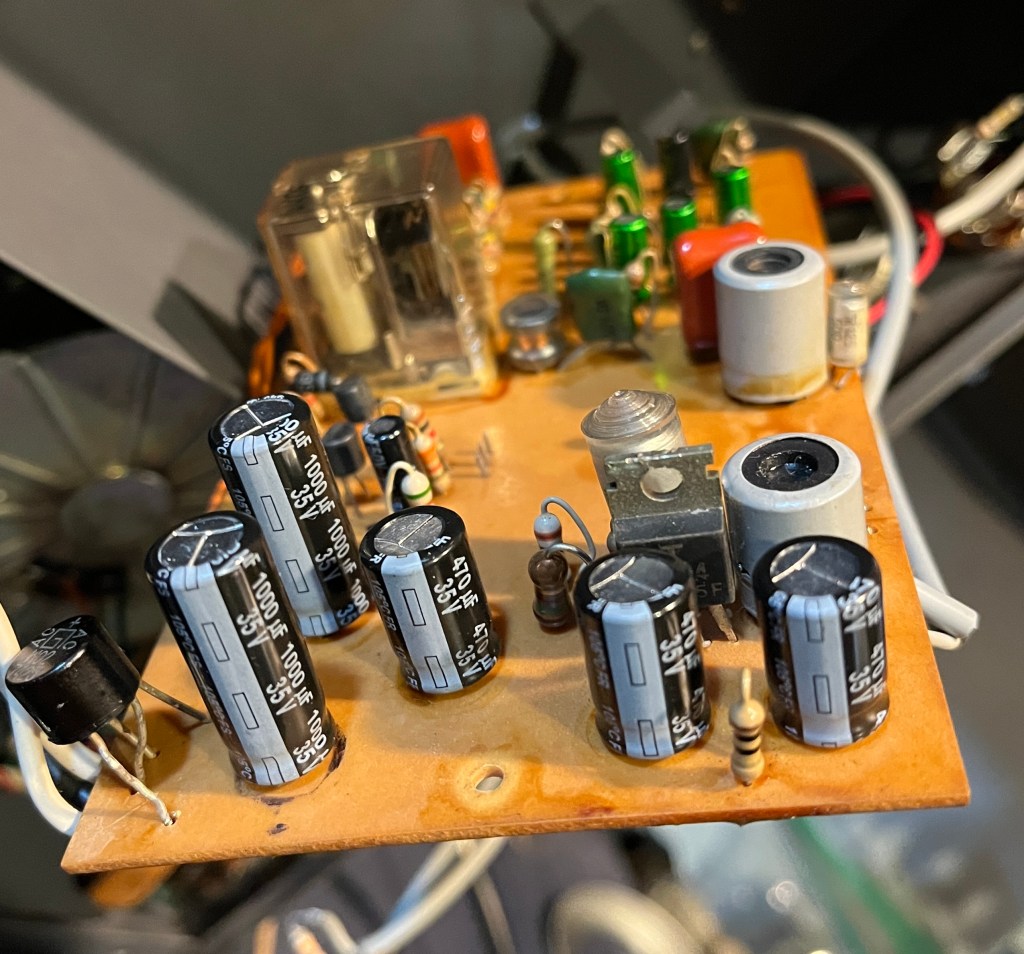

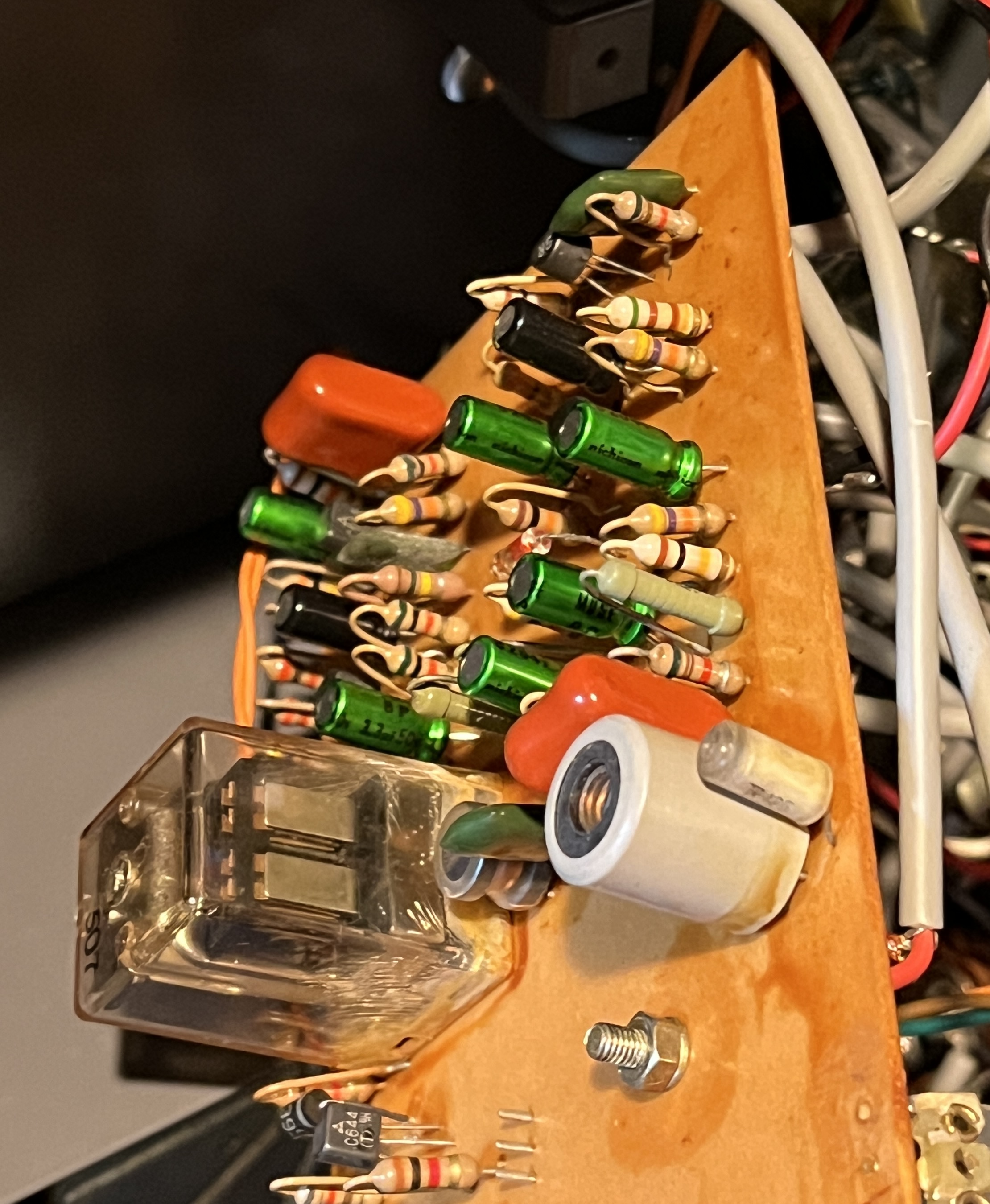

ELK EM-5 re-capped circuit board
All the capacitors are now replaced and upgraded to film caps in a few spots.

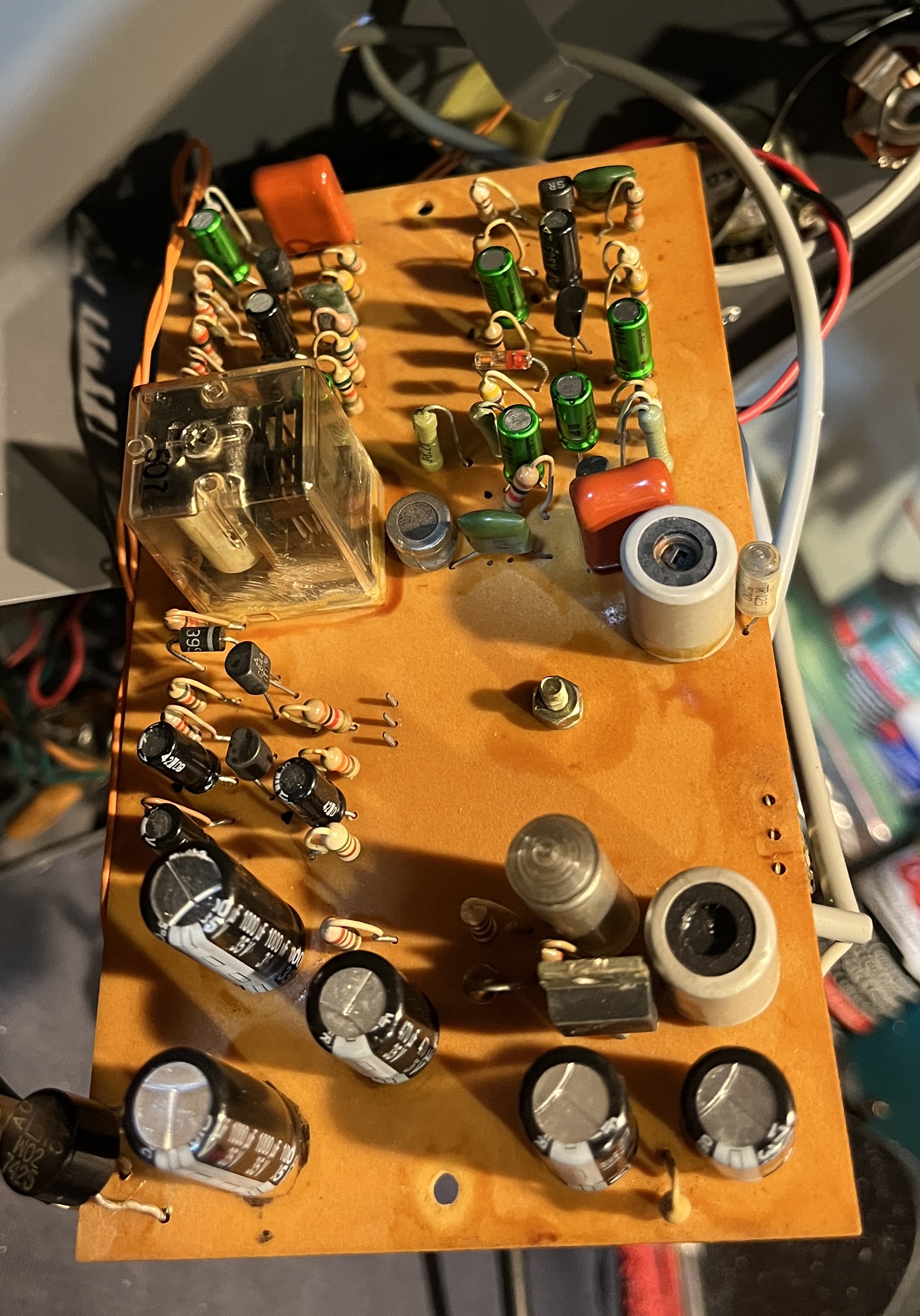

ELK EM-5 re-capped circuit board
ELK EM-5 re-capped circuit board
ELK EM-5 Cleaning the knobs

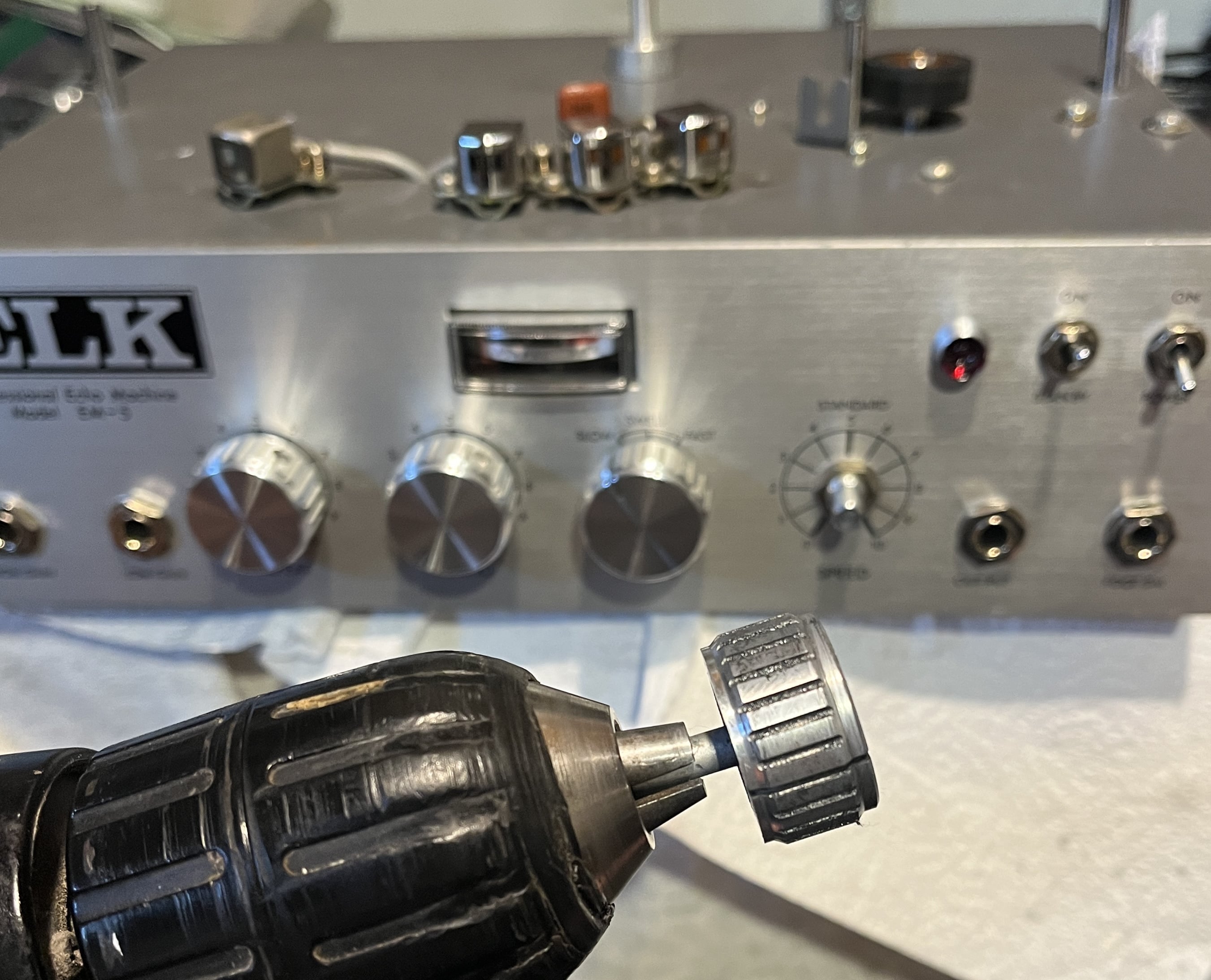

Polishing the aluminum knobs with a drill.

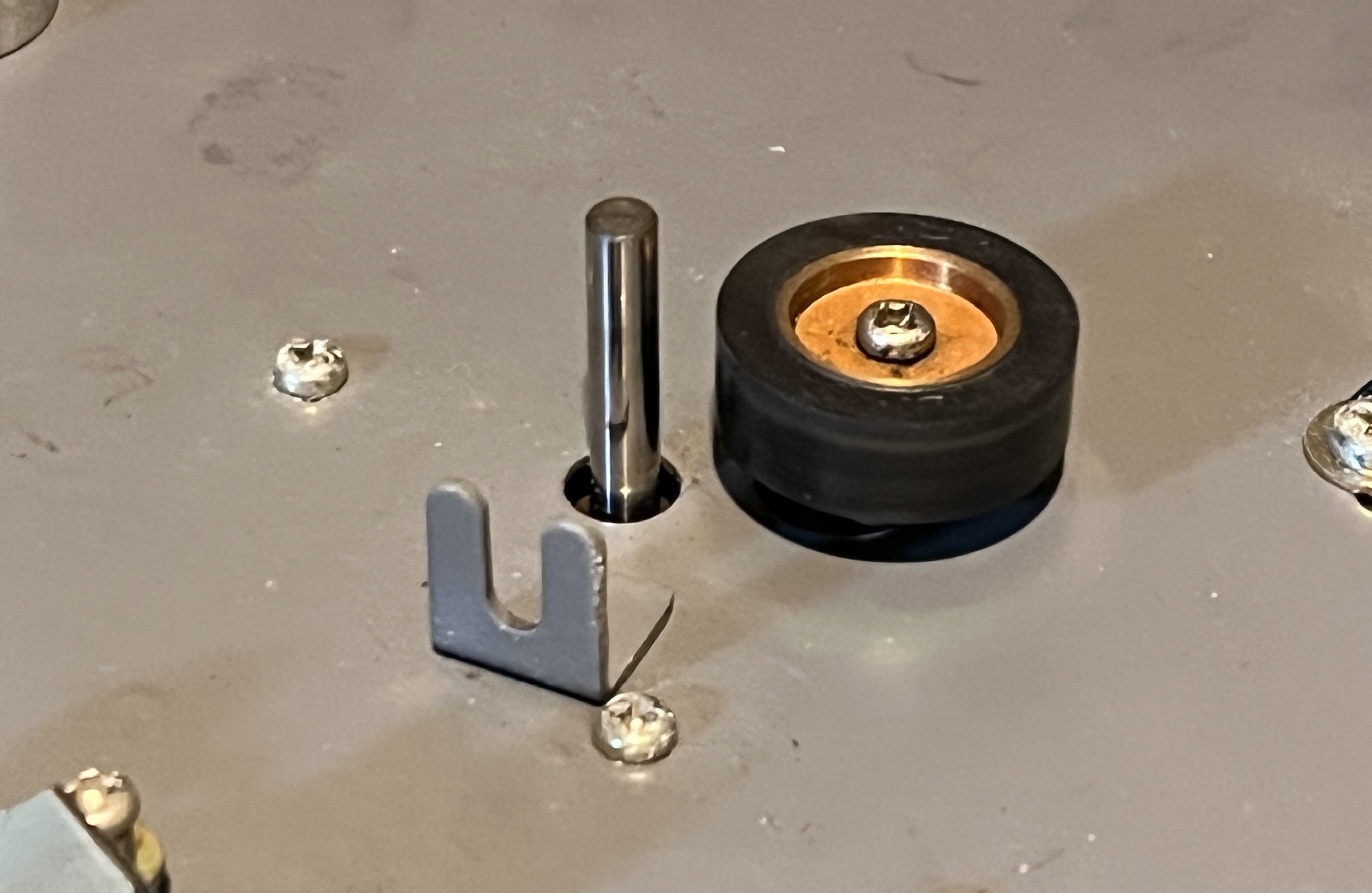

ELK EM-5 Pinch Roller

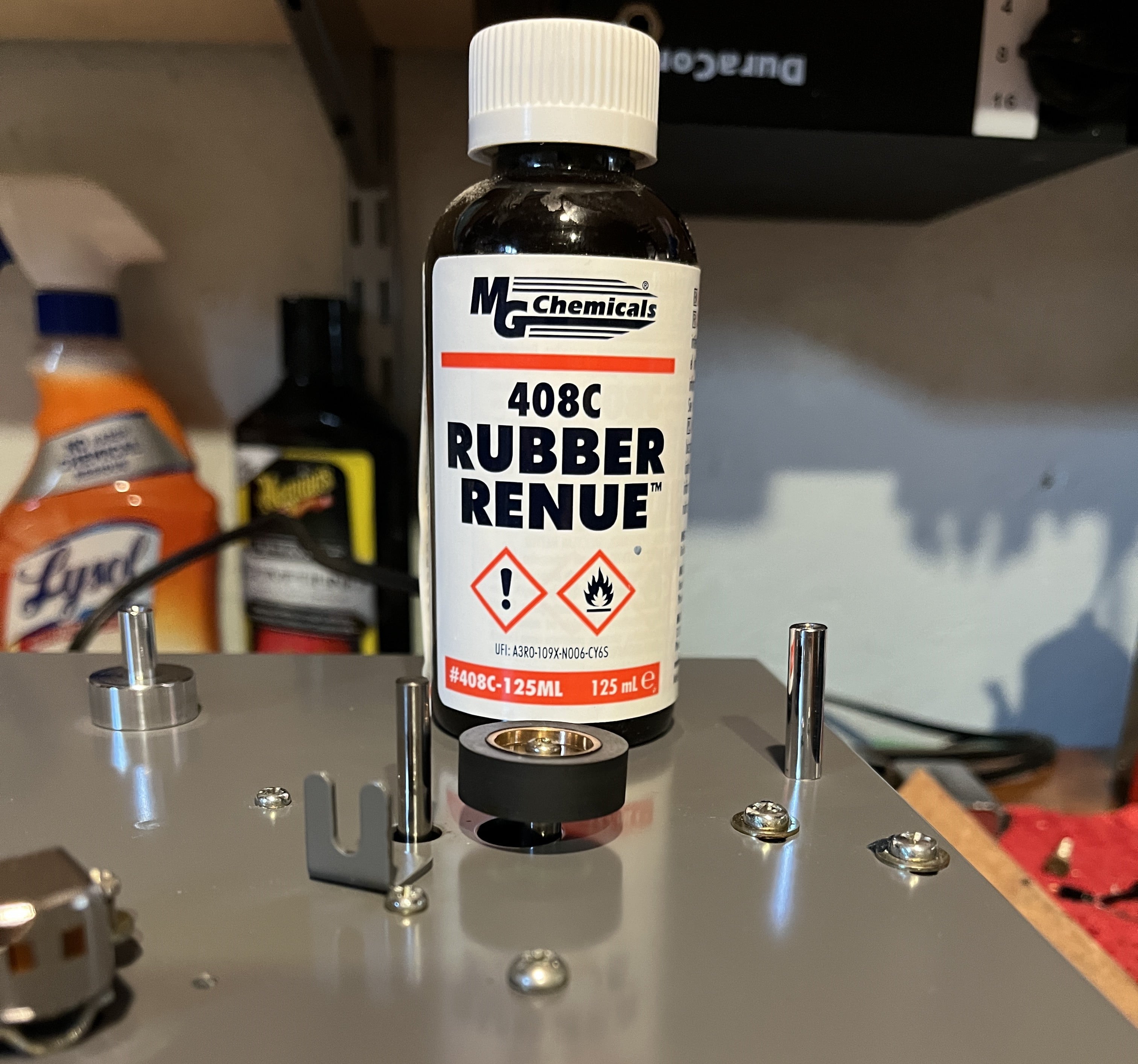

Rubber renue on the pinch roller to clean and condition it.
Back to finished pics
