$499 Shipped

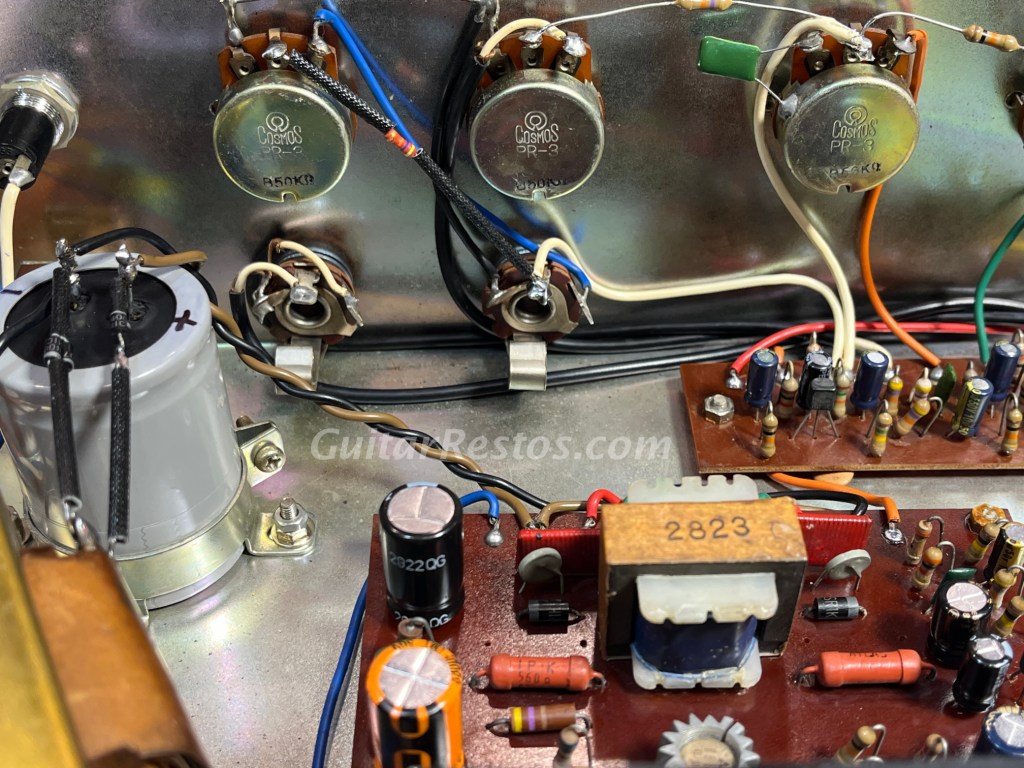

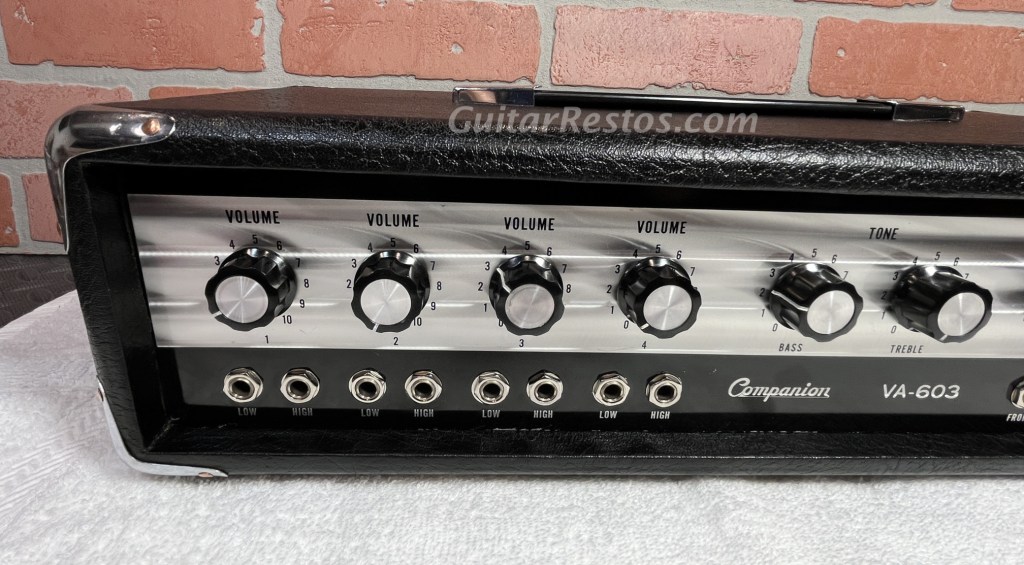

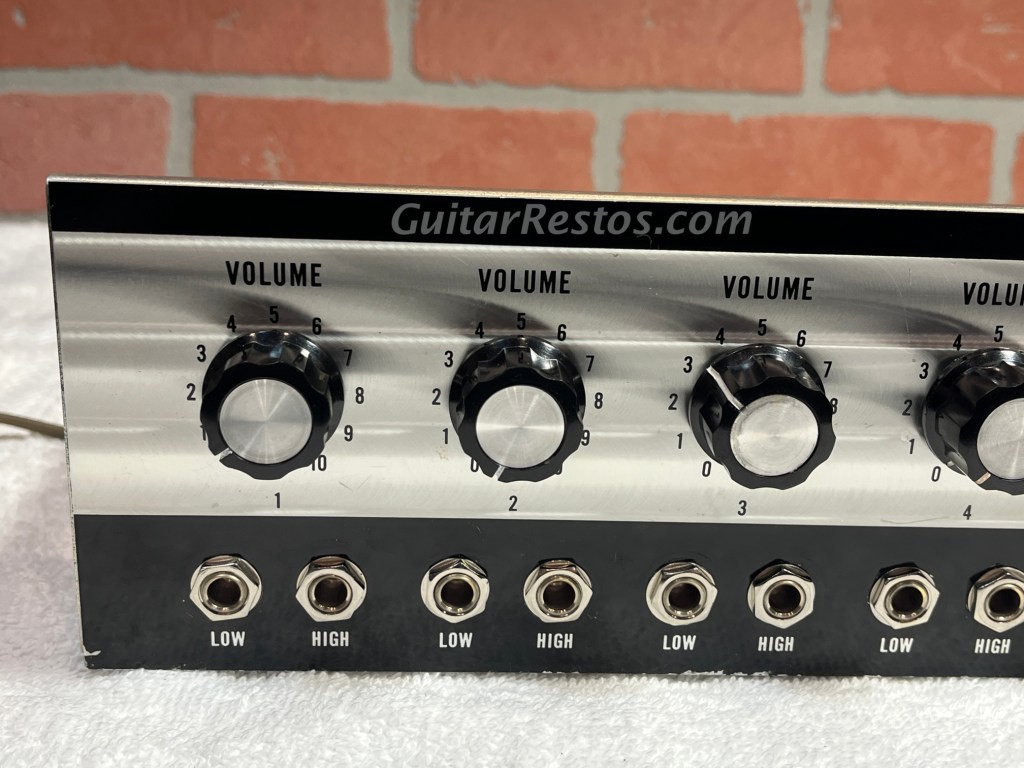

At first glance, it might look like the famous Psychedelic machine of the time but this is a completely different animal! It would make a perfect pairing with one though as the aesthetics are the same. This rare 1973 shin-Ei solid state amp showed up in working shape but pretty dirty. It needed a makeover and fresh capacitors to bring out it’s best so it got it! I kept the original main filter capacitor shell and stuffed it with a new one to keep the looks and the original date code which i used to date the machine to 1973. It runs off 100v so it will need an inexpensive transformer to safely run off the north american 120v standard. It cleaned up pretty nice after a bit of tlc and elbow grease. It’s looking awesome now. It’s a clean vocal amp with 4 inputs, mild reverb and an effects loop with a volume adjustment. All the original parts I removed will be included with it. Check out the restoration gallery for all the cleaning and before pics!

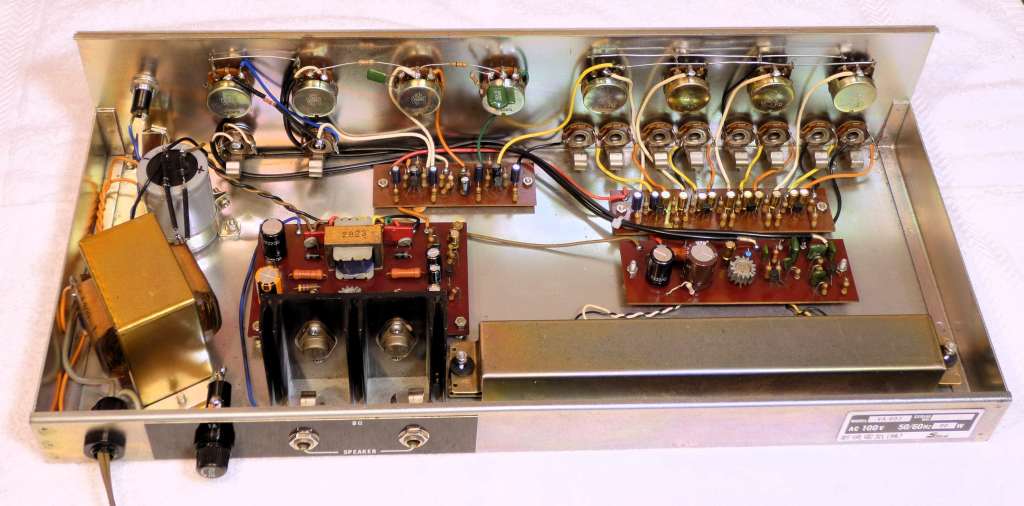

List of things that were done to it.
- Replaced all the electrolytic capacitors with quality Japanese/German ones with higher ratings than standard in most cases.
- Cleaned all the pcb boards with acetone to remove all the old dust and soldering flux.

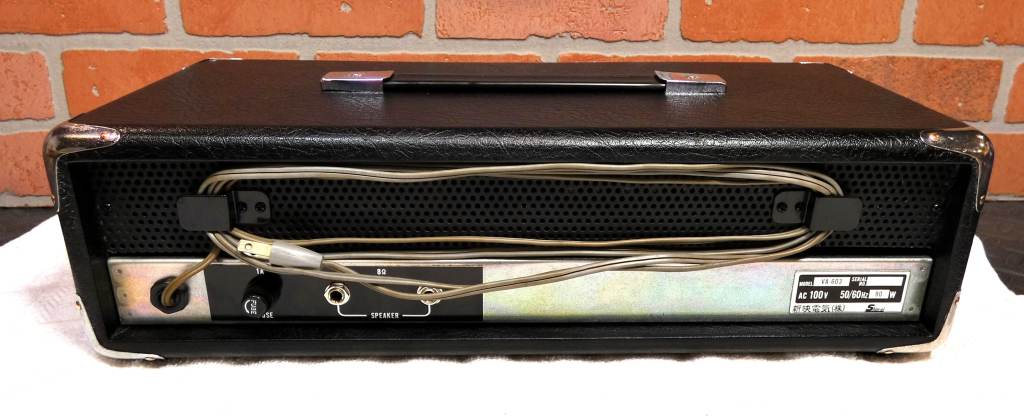

- Added a strain relief to the original power cord.
- The pots where cleaned with DeOxit

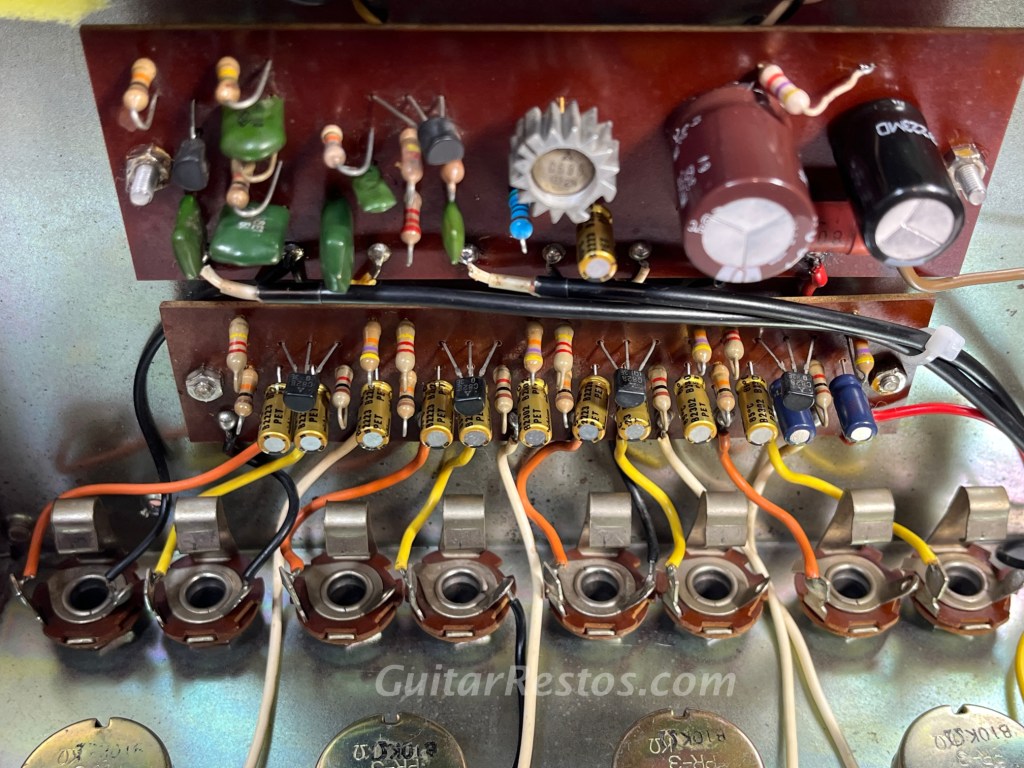

- The jacks were cleaned and pipe brushed with DeOxit
- Replaced rusty jack nuts and washers with new nickel plated ones.

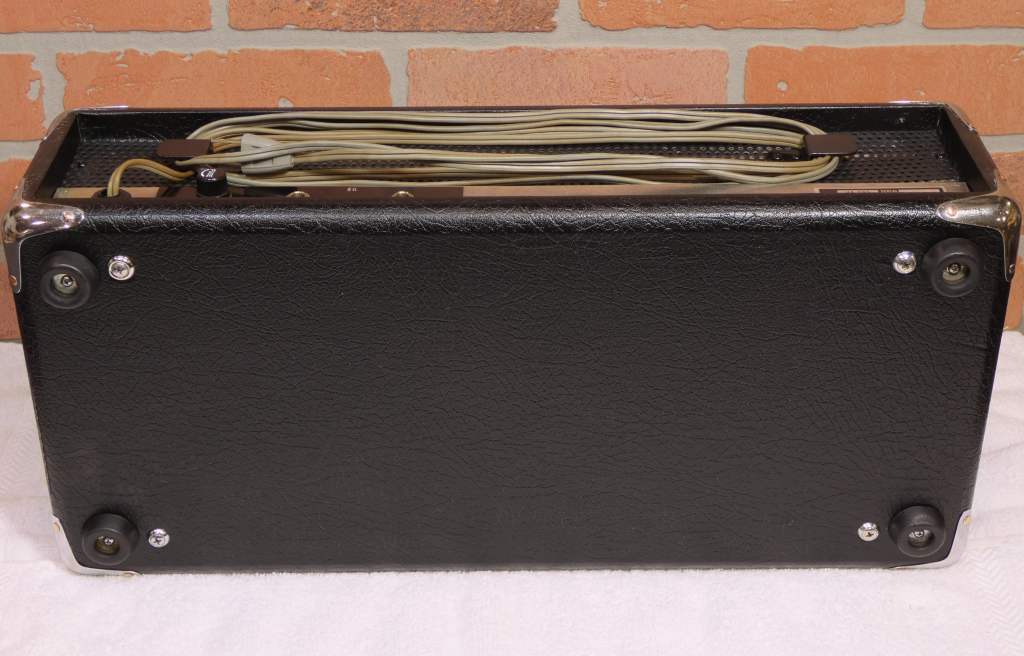

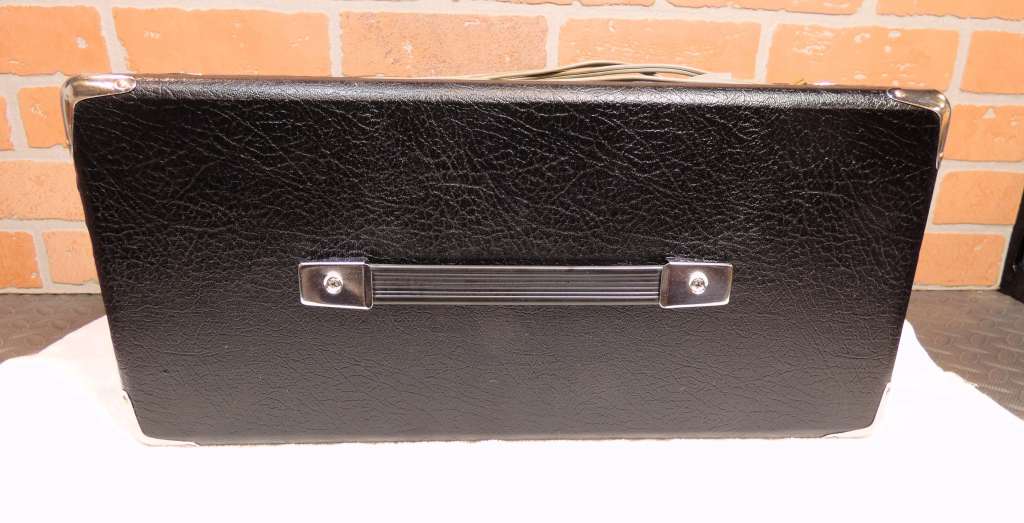

- Thoroughly cleaned the exterior and coated it with Aerospace 303 protectant

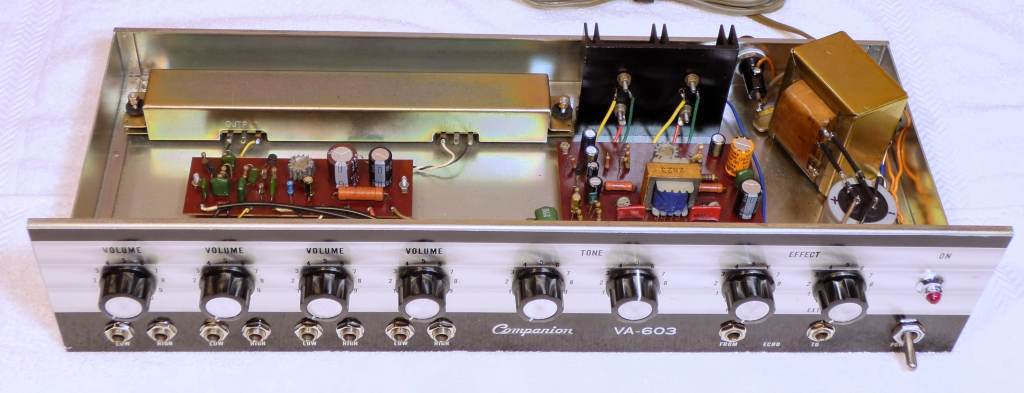

- Thoroughly cleaned the chassis and waxed it to help prevent corrosion.
